Description

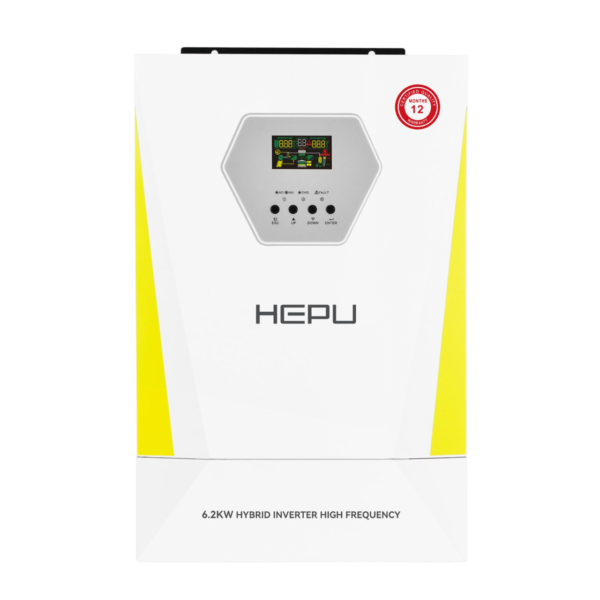

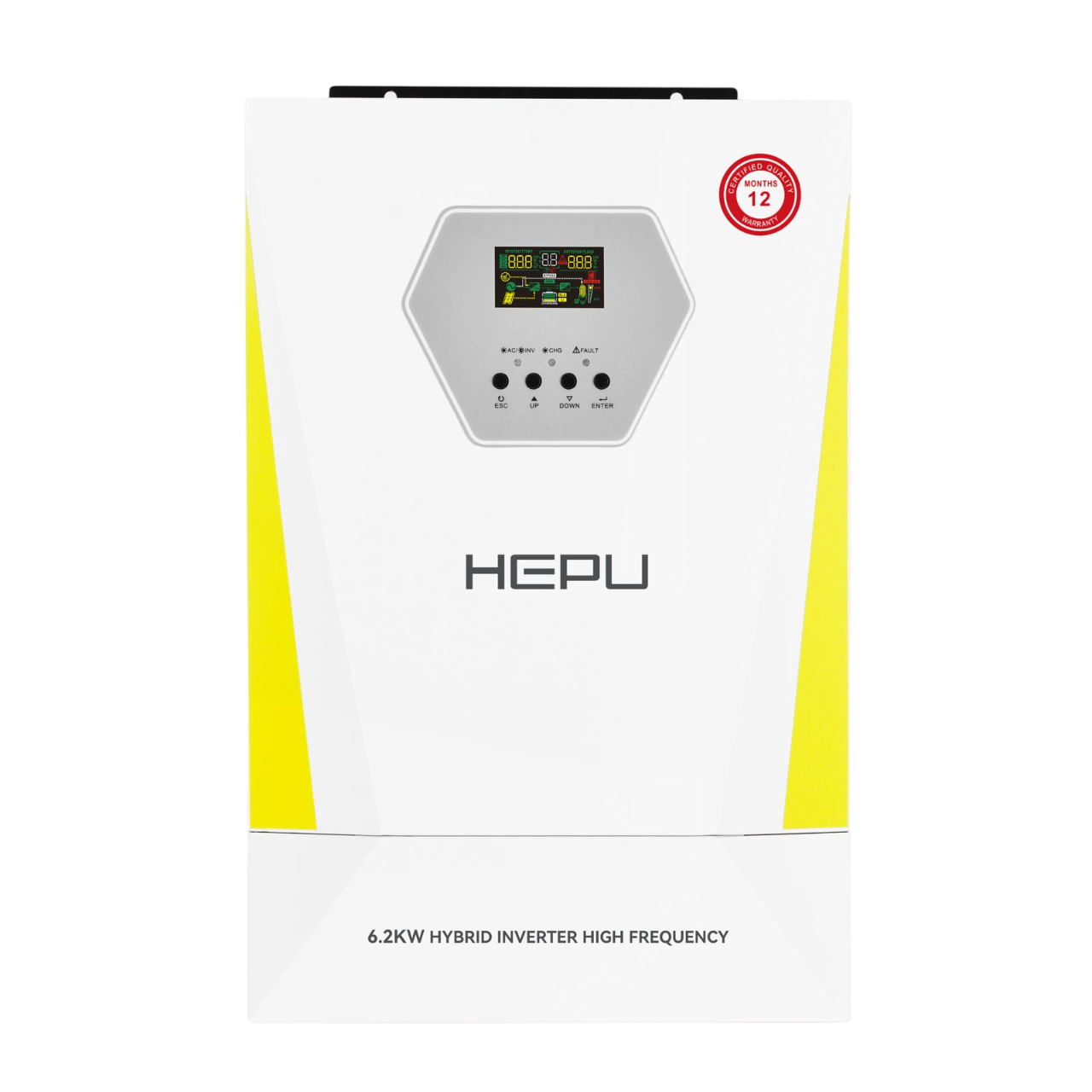

MODEL: GD6248SMHBG
CAPACITY: 6200VA/6200W
PV&D /AC: 6500VA/6500W
OPERATING TEMPERATURE RANGE: -10-50℃
PROTECTION DEGREE: IP21
INVERTER MODE
BATTERY VOLTAGE RANGE: 42-64V DC
MAX BATTERY DISCHARGE CURRENT: 143A
AC OUTPUT: 230V AC , 50/60HZ, 27A , 1ↀ
AC INPUT
AC CHARGER: 54V DC , 100A
AC INPUT: 230V AC, 50/60HZ, 40A , 1ↀ
AC OUTPUT: 230V AC , 50/60HZ, 27A , 1ↀ
SOLAR MODE
SOLAR PANEL POWER: 8500W
MAX CHARGING CURRENT: 120A
MAX INPUT CURRENT: 36A
NOMINAL INPUT CURRENT: 27A
SOLAR VOLTAGE RANGE(Vmp): 60-500V DC
FULL LOAD MPPT RANGE(Vmp): 360-430V DC
MAX SOLAR VOLTAGE: 500V DC
TWO LOAD OUTPUT POWER
FULL LOAD: 6200W
MAXIMUM MAIN LOAD: 6200W
MAXIMUM SECOND LOAD: 6200W
SECOND LOAD CUT OFF VOLTAGE: 44V DC
SECOND LOAD RETURN VOLTAGE: 52V DC
