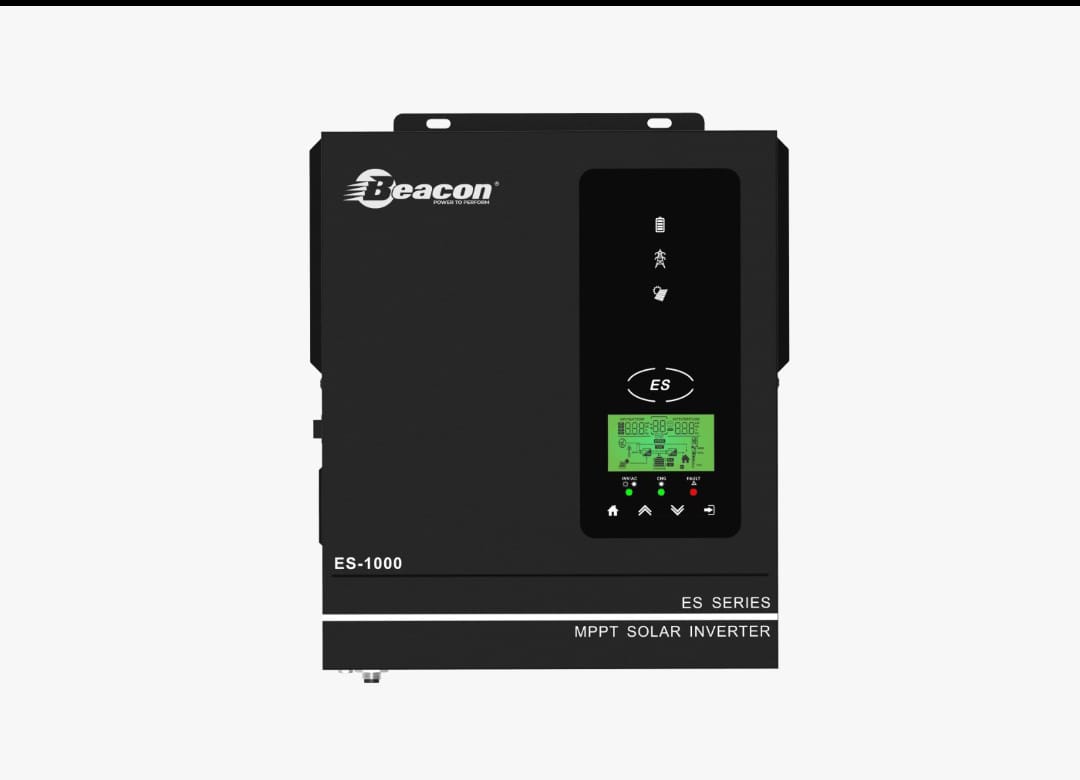

Description
Electrical & Output Performance
-
- Rated Output Power: 1000W / 1000VA
- Output Waveform: Pure Sine Wave (safely powers sensitive electronics)
- Output Power Factor: 1.0
- AC Voltage Regulation: 230VAC ± 5% (Battery Mode)
- Surge Power Capacity: 2000VA
- Peak Efficiency: 94% from battery to inverter; up to 98% from PV to inverter
- Transfer Time: 10ms for personal computers; 20ms for standard home appliances
- Frequency Range: 50 Hz / 60 Hz (Auto-sensing)Â
Solar & AC Charger Specifications
-
- Nominal Battery System: 12VDC
- Floating Charge Voltage: 13.5VDC
- Overcharge Protection Threshold: 16VDC
- Maximum Solar PV Array Power: 550W
- MPPT Operating Voltage Range: 20VDC to 150VDC
- Maximum Solar Charging Current: 40A
- Maximum AC Charging Current: 40A
- Maximum Total Charging Current (PV + AC): 80AÂ
Controls, Safety, & Form Factor
- Battery Compatibility: Configurable settings for traditional Lead-Acid, Gel, or Lithium (LiFePO4) battery profiles.
- System Protections: Built-in protection covers short circuits, overvoltage, undervoltage, overload, and overtemperature with automatic restart capabilities.
- Environmental Features: Built-in anti-dust kit allows the inverter to work smoothly in harsh, dusty environments.
- User Interface: Comprehensive LCD screen with button controls to program AC vs. Solar priority charging rules.
- Physical Dimensions: 286mm x 240mm x 91mm (extremely slim profile).
- Net Weight: 3.0 kg.
