Description

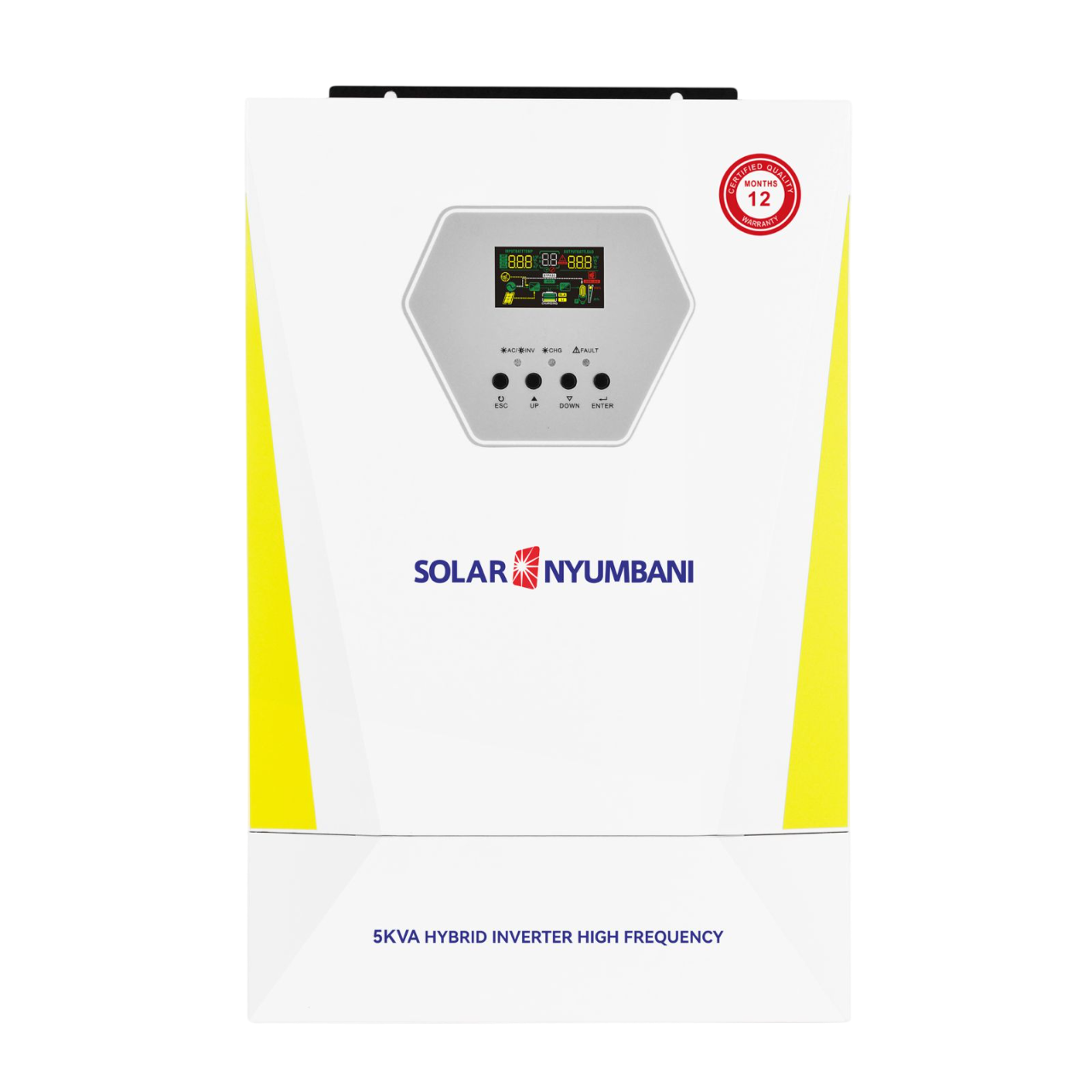

MODEL: GD5048SMHG
CAPACITY: 5KVA/5KW
PV&D /AC: 4500VA/4500W
OPERATING TEMPERATURE RANGE: -10-50℃
PROTECTION DEGREE: IP21
INVERTER MODE
BATTERY VOLTAGE RANGE: 21-32V DC
MAX BATTERY DISCHARGE CURRENT: 165A
AC OUTPUT: 230V AC , 50/60HZ, 21.7A , 1ↀ
AC INPUT
AC CHARGER: 27V DC , 100A
AC INPUT: 230V AC, 50/60HZ, 33.5A , 1ↀ
AC OUTPUT: 230V AC , 50/60HZ, 21.7A , 1ↀ
SOLAR MODE
SOLAR PANEL POWER: 6500W
MAX CHARGING CURRENT: 120A
MAX INPUT CURRENT: 36A
NOMINAL INPUT CURRENT: 27A
SOLAR VOLTAGE RANGE(Vmp): 60-500V DC
FULL LOAD MPPT RANGE(Vmp): 300-400V DC
MAX SOLAR VOLTAGE: 500V DC
TWO LOAD OUTPUT POWER
FULL LOAD: 5000W
MAXIMUM SECOND LOAD: 5000W
SECOND LOAD CUT OFF VOLTAGE: 22V DC
SECOND LOAD RETURN VOLTAGE: 26V DC
