Description

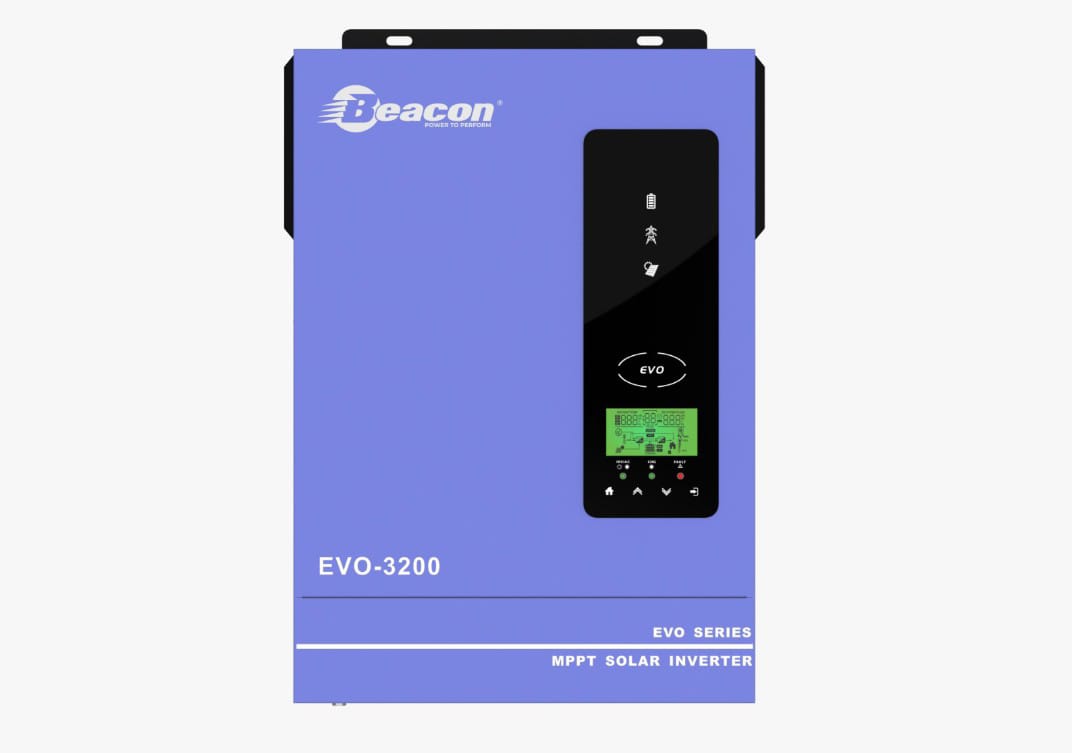

The official manufacturer datasheet specifications for the 3kVA (3000W) model are detailed below:
Electrical & Output Performance
-
- Rated Output Power: 3000W / 3000VA (True 1.0 Power Factor)
- Output Waveform: Pure Sine Wave
- AC Voltage Regulation: 230VAC ± 5%
- Surge Power Capacity: 6000VA / 6000W (ideal for starting inductive loads)
- Peak Efficiency: 98% (PV to Inverter)
- Transfer Time: 10ms for computers; 20ms for household appliancesÂ
Solar & AC Charger Specifications
-
- Nominal Battery System: 24VDC (Requires two 12V batteries wired in series)
- Maximum Solar PV Array Power: 3000W
- MPPT Operating Voltage Range: 30VDC to 400VDC
- Maximum PV Open Circuit Voltage (Voc): 400VDC
- Maximum Solar Charging Current: 80A (Note: Certain EVO editions upgrade to a 100A configuration)
- Maximum AC Grid Charging Current: 60AÂ
Operational Controls & Form Factor
-
- Dual AC Output (Select Models): Smart automation triggers a secondary output terminal to cut off heavy, non-essential loads when the battery drops below a safe percentage.Â
- Battery Flexibility: Seamless communication with Lithium arrays (LiFePO4), AGM, and deep-cycle Gel battery cells.Â
- No-Battery Operation: Capable of powering your household loads directly from solar panel arrays during peak daytime hours, completely bypassing the battery loop.Â
- Dimensions & Weight: Measures 390mm x 270mm x 100mm and weighs roughly 5.4 kg.
Expanded Appliance Compatibility
The 3000W capacity significantly broadens what you can run inside a home or field office. It comfortably powers:Â
-
- A washing machine or a microwave
- A continuous deep freezer and refrigerator setup
- A small inverter-type air conditioning unit or water pressure pump
- Comprehensive lighting, entertainment, and computing gridsÂ
